Complete, Connected, and Ready to Perform
This turnkey solution includes all required equipment, fully integrated from the new binder storage area
to your mixing tower. It features vertical tanks, heating systems, a unloading station, and full automation.

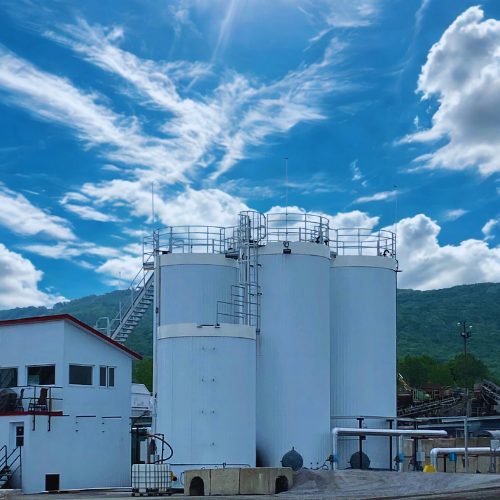

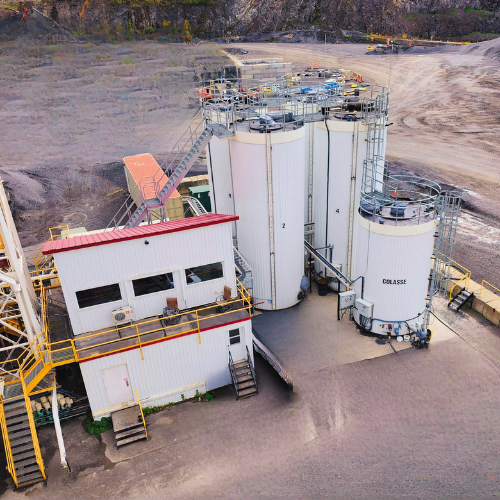

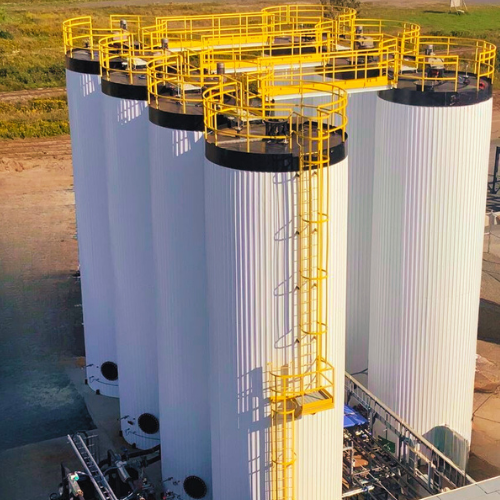

Vertical Bitumen Tanks (2 x 100,000 L):
- Electric heating: variable power based on tank capacity, PID-controlled
- Vertical agitators with three blades on each tank
- Sandblasting treatment and interior/exterior painting
- Secure access via galvanized stairways and upper walkways
- Temperature control: sensors, digital displays, thermocouples
- Level measurement: non-contact radar, electronic low- and high-level sensors
- Reinforced insulation: rock wool + fiberglass, 8" walls + 12" upper and lower sections
- Connections for filling, return lines, sensors, and overflow
Heated Piping Network:
- Self-regulating heat tracing
- Temperature sensors by zone
- Designed for future expansion
- Insulation up to 4" with rock wool and aluminum cladding
Bitumen Dosing System:
- Pumps for batch and continuous operations
- Electric cartridge heater (1 kW) with sensor
- Three-way motorized valves for filling and injection
- Coriolis-type flow meter
Automation and Control:
- Independent electrical control panel with supervision
- Remote access via VPN
- 7-day heating schedule, by zone
- Energy monitoring by equipment and time period
- Emergency stop, alarms, and status indicators
Unloading Station:
- Manual and motorized valves (3" and 4") with pneumatic control and positioner
- Self-cleaning filter, scraping and draining system, sampling valve, disconnect safety
-
Electrically heated pump, with optional integrated dual relief valve
for bidirectional rotation
- Transparent protective enclosure, NEMA-rated sealed cabinet
